Pallet Rack

If you want to find a better way to store your palletized or boxed warehouse products, Concept Storage can help. We have adjustable pallet racking solutions for diverse storage requirements. Our systems help you better optimize and organize the products in your warehouse. Whether you are starting from scratch or adding to an existing racking installation, Concept Storage has the knowledge and experience to meet your needs.

PALLET RACKING SOLUTIONS

selective pallet rack

SELECTIVE PALLET RACK

A selective rack is a steel storage system arranged in either single or back-to-back (double) rows. Each of the rows offers a bay or number of bays in the down aisle direction.

Double Deep Pallet Racking

DOUBLE DEEP RACK

Double deep rack can accommodate two pallet loads, stored back-to-back and requires a special fork truck called a deep reach truck. The double deep rack offers medium storage density and low cost.

Drive In Rack System | Concept Storage Systems

DRIVE-IN RACK

Drive-in systems offer a highly efficient method of storing large quantities of similar loads, by allowing the forklift driver to enter the rack system and place the load on structural rails.

Push Back Racks

PUSH-BACK RACK

Push back racks offer the same storage density as drive-in racks but with greater selectivity. Loads in each lane rest on a cart on a rail that slopes slightly toward the front.

Pallet Flow Racking

PALLET-FLOW

In this first-in/first-out (FIFO) system, pallets are loaded at the top end of the slightly inclined rack and glide safely and effortlessly at a controlled pace to the other side.

Carton Flow

CARTON-FLOW

Carton Flow Rack can be used for both cartons and pallets. The systems may be many units deep and are most often used in situations where the carton or pallet at the front is going to be picked first.

RACK SYSTEM CONFIGURATIONS: STORAGE LOGIC

Racking SystemDensitySelectivityInventory FlowBest Application
SelectiveLow100%FIFOHigh variety of SKU's; fast turnover; requires immediate access to every pallet.
Double DeepModerate50%LIFOStoring 2 pallets of the same SKU deep; increases density while maintaining reasonable access.
Drive-InVery HighLowLIFOStoring large quantities of the same SKU; minimizes aisle space; ideal for cold storage.
Push BackHighModerateLIFOHigh-density storage (2-6 deep) that allows access to different SKUs on different levels.
Pallet FlowVery HighModerateFIFOHigh-volume perishables or time-sensitive goods; pallet flow via gravity from load to pick face.
Carton FlowHigh100% (for cases)FIFOPiece picking or case picking; gravity-fed rollers for smaller items rather than full pallets.
Roll OutLow/Moderate100%N/AStorage of heavy dies, molds, or motors; shelves extend out 100% for crane/hoist access.

{“system_configurations”:[{“racking_system”:”Selective”,”density”:”Low”,”selectivity”:”100%”,”inventory_flow”:”FIFO”,”best_application”:”High variety of SKU’s; fast turnover; requires immediate access to every pallet.”},{“racking_system”:”Double Deep”,”density”:”Moderate”,”selectivity”:”50%”,”inventory_flow”:”LIFO”,”best_application”:”Storing 2 pallets of the same SKU deep; increases density while maintaining reasonable access.”},{“racking_system”:”Drive-In”,”density”:”Very High”,”selectivity”:”Low”,”inventory_flow”:”LIFO”,”best_application”:”Storing large quantities of the same SKU; minimizes aisle space; ideal for cold storage.”},{“racking_system”:”Push Back”,”density”:”High”,”selectivity”:”Moderate”,”inventory_flow”:”LIFO”,”best_application”:”High-density storage (2-6 deep) that allows access to different SKUs on different levels.”},{“racking_system”:”Pallet Flow”,”density”:”Very High”,”selectivity”:”Moderate”,”inventory_flow”:”FIFO”,”best_application”:”High-volume perishables or time-sensitive goods; pallets flow via gravity from load to pick face.”},{“racking_system”:”Carton Flow”,”density”:”High”,”selectivity”:”100% (for cases)”,”inventory_flow”:”FIFO”,”best_application”:”Piece picking or case picking; gravity-fed rollers for smaller items rather than full pallets.”},{“racking_system”:”Roll Out”,”density”:”Low/Moderate”,”selectivity”:”100%”,”inventory_flow”:”N/A”,”best_application”:”Storage of heavy dies, molds, or motors; shelves extend out 100% for crane/hoist access.”}]}

PALLET RACKING TYPES

WELDED PALLET RACKING

Roll-formed welded pallet racking is the most popular selective pallet racking type, as it is the most versatile. There are variety of column sizes and gauges available to accommodate any load size or capacity, and is readily available from stock.

KNOCK-DOWN RACKING

Roll-formed, knock-down pallet racking differs from welded pallet racking, because the frame structure is bolted together, rather than welded. Knock-down pallet racking is easy to install, and is available in many configurations.

STRUCTURAL STEEL RACKING

Structural steel pallet racking is designed for high-capacity loads, and can be used in multiple configurations. The open channel design and thick cross-section makes the structural steel racking strong enough for any application.

CONSTRUCTION & MATERIALS

TypeDefinitionDurability & Impact ResistanceKey Characteristic
Structural SteelMade from hot-rolled c-channel steel (like I-beams)Extreme. Can withstand significant forklift impacts. The "heavy duty" option. Easy to keep clean (open channel); usually bolted connections.
Roll Formed (Standard)Cold-rolled steel sheets formed into column shapes. Moderate. Susceptible to forklift damage. The industry standard. Versatile, lighter weight, and generally lower cost than structural.
WeldedFrames are welded together at the factory. High. Rigid connections. Shipped as one piece. Saves installation time but higher freight cost.
Knock DownFrames are bolted together on-site. Moderate to High (dependent on assembly).Shipped efficiently (compact). Parts can be easily replaced if damaged without replacing the whole frame.

{“construction_and_materials”:[{“type”:”Structural Steel”,”definition”:”Made from hot-rolled c-channel steel (like I-beams).”,”durability_impact_resistance”:”Extreme. Can withstand significant forklift impacts.”,”key_characteristic”:”The “heavy duty” option. Easy to keep clean (open channel); usually bolted connections.”},{“type”:”Roll Formed (Standard)”,”definition”:”Cold-rolled steel sheets formed into column shapes.”,”durability_impact_resistance”:”Moderate. Susceptible to forklift damage.”,”key_characteristic”:”The industry standard. Versatile, lighter weight, and generally lower cost than structural.”},{“type”:”Welded”,”definition”:”Frames are welded together at the factory.”,”durability_impact_resistance”:”High. Rigid connections.”,”key_characteristic”:”Shipped as one piece. Saves installation time but higher freight cost.”},{“type”:”Knock Down”,”definition”:”Frames are bolted together on-site.”,”durability_impact_resistance”:”Moderate to High (dependent on assembly).”,”key_characteristic”:”Shipped efficiently (compact). Parts can be easily replaced if damaged without replacing the whole frame.”}]}

PALLET RACKING ACCESSORIES

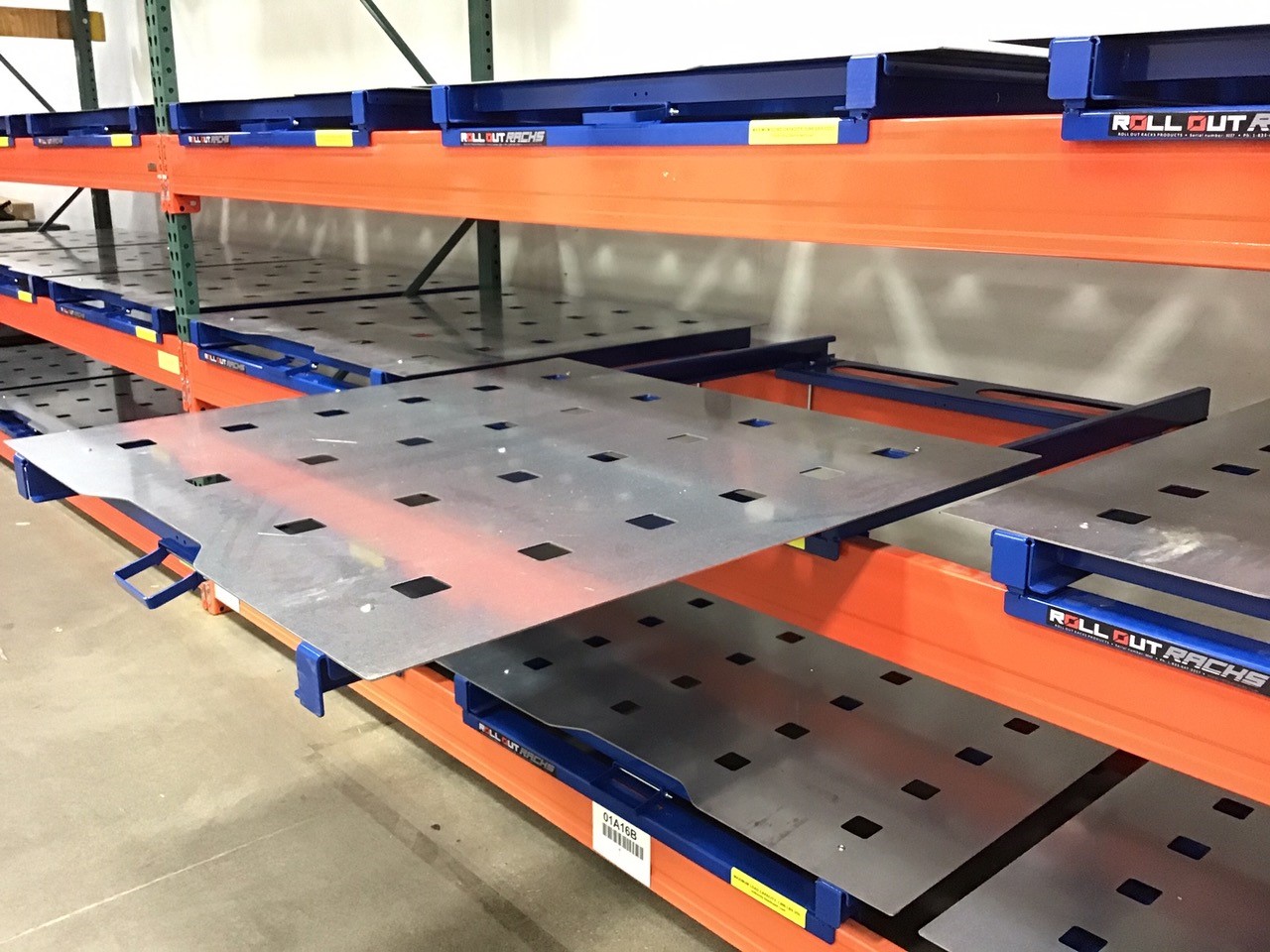

Concept Storage | Roll Out Pallet Racking

ROLL-OUT RACKS

Roll out pallet racks provide warehouse attendees easy access to pallet positions, thus greatly reducing the risk of injury from bending over and being underneath a pallet racking level.

Carton Flow with lane dividers

PALLET RACK DIVIDERS

Pallet rack dividers and holders are excellent accessories to maintain an organized, and accessible storage system. We supply a variety of dividers, and holders that are versatile and adaptable.

Pallet Racking Accessories | Wire Mesh Decking

MORE ACCESSORIES

We maintain a large stock of pallet racking accessories including safety bars, wire mesh decking, row spacers, post protectors, aisle end guards, bollards, guardrails and hardware.

PALLET RACKING SERVICES

Rack Repair Services

Concept strives to put an end to the endless cycle of upright replacement while focusing on warehouse safety and the permanent elimination of recurring expenses.

Rack Installation & Relocation

Whether you are moving, expanding or otherwise changing your storage configuration and capacity, we provide expert pallet rack installation and rack relocation services.

Rack Inspection Services

Concept Storage understands the critical role that industrial racks play in your operations, and we’re here to help you maintain the highest safety standards and compliance.
